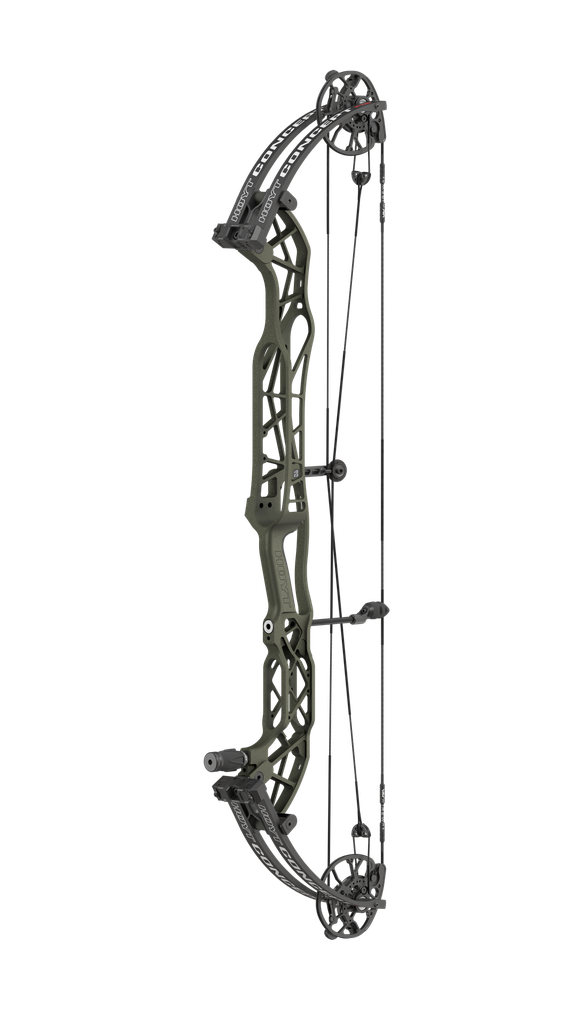

Compound Bow Concept XTS 34 Hoyt

Product Description

The Hoyt Concept XTS 34 is a compact target compound bow based on the successful Concept X platform.
The proven geometry has been further developed with the new SCTR 2.0 Cam System, the XTS Tuning System and additional design optimisations.

Features

• XTS Tuning System for horizontal and vertical fine-tuning
• SCTR 2.0 Cam System with an optimised draw force curve
• Shoot Through Riser for high stability
• Proven TXL limb system
• Modular grip system for individual adjustment
• CDM, Spec and TDM modules for different draw characteristics

XTS Tuning System

The XTS Tuning System allows precise bow tuning directly through the limb pockets.
The system uses adjustable wedges whose position is changed via an adjustment screw.
This allows the load on the corresponding limb to be fine-tuned.
The two limb pockets perform different functions:

• Lower limb pocket: Corrects horizontal deviations, specifically Tail Left and Tail Right during paper tuning
• Upper limb pocket: Corrects vertical deviations, specifically Tail High and Tail Low during paper tuning

Both adjustments can be made independently and combined.
This allows horizontal and vertical deviations identified during paper tuning to be corrected precisely.
Engraved scales make it possible to track adjustments accurately and restore previous settings.
After tuning, the position is secured with a locking screw.
XTS is not limited to conventional paper tuning.
Hoyt also lists paper tuning, bareshaft tuning, group tuning and fine-tuning of aiming behaviour and holding weight among its applications.
A bow press is not required for adjustments using the XTS system.

SCTR 2.0 Cam System
The new SCTR 2.0 Cam System has been redesigned compared with the previous SCTR system.
The draw force curve has been made smoother at the beginning and end of the draw.
At the same time, the system stores more energy and, according to Hoyt, achieves up to 4 fps more speed.
Various modules are available for individual adjustment:

• The new TDM module covers positions A to E in 1/2" increments and provides a more linear draw force curve.
• The established CDM and Spec modules continue to be used, offering different draw characteristics and setup options.

Modular Grip System

The grip angle can be adjusted using interchangeable grip plates.
Hoyt offers angles of 0°, +4° and +8°.
Each angle is also available in a version that reduces the draw length by 1/8".
This allows the grip position and effective draw length to be precisely adapted to the archer without changing the bow's tuning.

Technical Specifications

• Manufacturer: Hoyt
• Model: Concept XTS 34
• Product type: Target compound bow
• Axle-to-axle length: 34" / approx. 86.4 cm
• Brace height: 6.25" / approx. 15.9 cm
• Speed: Up to 334 fps ATA
• Weight: 4.75 lbs / approx. 2.15 kg
• • Cam System: SCTR 2.0
• • Tuning System: XTS Tuning System
• Limb system: TXL
• Draw length with CDM module: 24.5" to 27.5"
• Draw length with Spec module: 23.5" to 29.5"
• Draw length with TDM module: 27.5" to 29.5"
• Riser: Shoot Through Riser
• Grip system: Hoyt Modular Grip System
• String and cables: WireWRX

Package Includes

• 1x Hoyt Concept XTS 34 compound bow in the selected configuration

Note
For optimal performance, the draw length, draw weight, cam module, arrow setup and basic bow settings should first be adjusted to suit the archer.
The XTS system can then be used for precise fine-tuning.
