Product description
Maximum precision for the highest demands:
The Easton X10 is the benchmark for tournament arrows at world-class level.

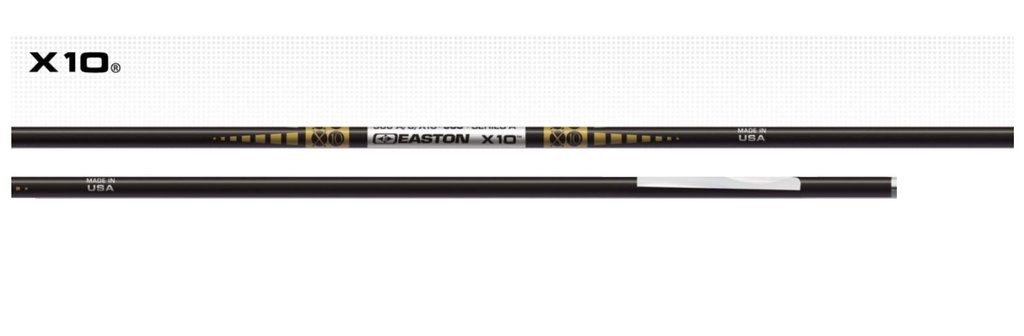

The Easton X10 is a hybrid arrow shaft made of carbon and aluminium with a barrel profile, developed specifically for Olympic recurve and compound archers.
The combination of a 7075 aluminium core and a high-modulus carbon sheath provides exceptional straightness, low wind resistance and maximum consistency in flight behaviour - ideal for the highest tournament demands.
Features
- Highest precision through optimised mass distribution
- Low wind susceptibility thanks to the barrel profile
- Exceptional consistency through strict manufacturing tolerances
- Proven at the Olympic Games and World Championships
- Compatible with various pin nocks and break-off points
Technical data
- Material: 7075 aluminium core with carbon sheath
- Straightness: ±0.001"
- Weight tolerance: ±0.5 grain
- Spine values: 325–1000 (subject to availability)
- Outer diameter: varies depending on spine (e.g. 0.221" at spine 325)
- Length: approx. 29"–30.5" depending on spine
- GPI (grain/inch): varies depending on spine
Scope of delivery
- 12 × Easton X10 shafts (raw, uncut)
- UNI bushing pre-fitted
- Without nock and point
Note
This shaft is the first choice for ambitious competitive archers.
Combined with the appropriate X10 components (e.g. break-off points and pin nocks), it creates a perfectly matched setup that guarantees maximum accuracy and performance, even under competition conditions.
The shafts must be cut to the desired length and fitted with suitable points and nocks.
Please observe the maximum permitted trimming length from the point end to maintain structural integrity.
Specifications
| Spinewert | 500 or 600 or 700 or 1000 or 380 or 450 or 550 or 900 or 410 or 650 or 750 or 830 |
| Pfeilmaterial | Aluminium/Carbon |
| Rundlaufgenauigkeit | .0015" |
| Gewichtstoleranz | .5Grain |
